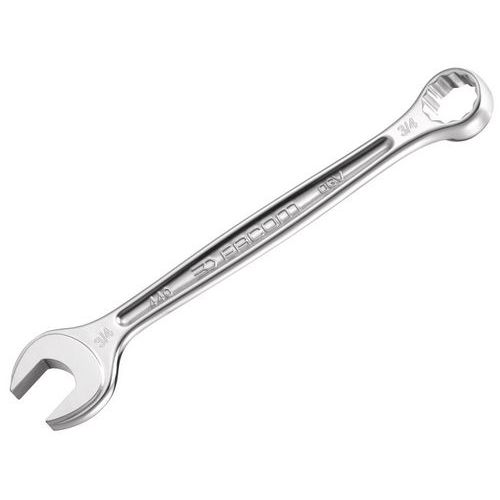

Standardschlüssel für alle gängigen Anwendungen. Hohe mechanische Leistung bei geringerem Platzbedarf, für Standards in der Luft- und Raumfahrt Ösenkopf: - Auslösung der Öse (Seite E) für besseren Zugang zu Schrauben in Reihe oder eingelassenen Schrauben - Zwölfkant-Öse mit OGV®-Profil für eine stärkere Einspannung bei Schonung der Mutter Nachgestellte Bezeichnung H = Sechskant-Öse. - Ösenkopf, zu 15° geneigt Gabelkopf: - Gabel, zu 15° geneigt - Optimiertes Design von Gabelkopf und Schaft für bessere Zugänglichkeit Abmessungen in Zoll: 1/4 bis 1 1/2. Ausführung: verchromt satiniert.
5/8
15/16
1/4
13/16
11/32
3/8
11/16
1
7/8
1'3/8
1'1/8
7/16
3/4
9/16
+ 2 138 mm
216 mm
248 mm
195 mm
202 mm
430 mm
145 mm
115 mm
155 mm
305 mm
224 mm
180 mm
267 mm
274 mm
+ 2 440.9/16
440.1P3/8
440.5/8
440.1/4
440.3/4
440.7/8
440.13/16
440.7/16
440.11/16
440.11/32
440.15/16
440.1P1/8
440.1P
440.3/8
+ 2 3.8 mm
5.2 mm
13.5 mm
9.7 mm
8.3 mm
7.3 mm
9.9 mm
4.7 mm
8.6 mm
7.6 mm
6.4 mm
9 mm
10.7 mm
5.5 mm
+ 2 A []: 1/4, B [mm]: 14,1, B1 [mm]: 10,0, C1 [mm]: 6,0, E [mm]: 3,1, E max. [mm]: 3,1, E1 [mm]: 6,0, E2 [mm]: 3,8, L [mm]: 115, [g]: 20,
A []: 11/32, B [mm]: 21,2, B1 [mm]: 14,2, C1 [mm]: 7,1, E [mm]: 3,9, E max. [mm]: 3,9, E1 [mm]: 7,1, E2 [mm]: 4,7, L [mm]: 138, [g]: 35,
A []: 1'3/8, B [mm]: 74,3, B1 [mm]: 51,0, C1 [mm]: 19,5, E [mm]: 12,8, E1 [mm]: 19,5, E2 [mm]: 13,5, L [mm]: 430, [g]: 890
A []: 1, B [mm]: 53,0, B1 [mm]: 36,4, C1 [mm]: 14,7, E [mm]: 9,4, E1 [mm]: 14,7, E2 [mm]: 9,9, L [mm]: 274, [g]: 315
A []: 3/4, B [mm]: 41,2, B1 [mm]: 27,8, C1 [mm]: 11,9, E [mm]: 7,2, E max. [mm]: 7,2, E1 [mm]: 11,9, E2 [mm]: 8,3, L [mm]: 216, [g]: 170,
A []: 7/16, B [mm]: 24,5, B1 [mm]: 16,9, C1 [mm]: 8,1, E [mm]: 4,6, E max. [mm]: 4,6, E1 [mm]: 8,1, E2 [mm]: 5,5, L [mm]: 155, [g]: 50,
A []: 7/8, B [mm]: 46,9, B1 [mm]: 32,3, C1 [mm]: 13,3, E [mm]: 8,3, E max. [mm]: 8,3, E1 [mm]: 13,3, E2 [mm]: 9,0, L [mm]: 248, [g]: 230,
A []: 5/8, B [mm]: 35,6, B1 [mm]: 23,9, C1 [mm]: 10,5, E [mm]: 6,4, E max. [mm]: 6,4, E1 [mm]: 10,5, E2 [mm]: 7,3, L [mm]: 195, [g]: 115,
A []: 11/16, B [mm]: 37,0, B1 [mm]: 25,3, C1 [mm]: 10,9, E [mm]: 6,5, E max. [mm]: 6,5, E1 [mm]: 10,9, E2 [mm]: 7,6, L [mm]: 202, [g]: 130,
A []: 13/16, B [mm]: 43,1, B1 [mm]: 29,5, C1 [mm]: 12,3, E [mm]: 6,3, E max. [mm]: 6,3, E1 [mm]: 12,3, E2 [mm]: 8,6, L [mm]: 224, [g]: 185,
A []: 3/8, B [mm]: 23,0, B1 [mm]: 15,0, C1 [mm]: 7,6, E [mm]: 4,2, E max. [mm]: 4,2, E1 [mm]: 7,6, E2 [mm]: 5,2, L [mm]: 145, [g]: 45,
A []: 15/16, B [mm]: 51,0, B1 [mm]: 35,0, C1 [mm]: 14,2, E [mm]: 8,9, E max. [mm]: 8,9, E1 [mm]: 14,2, E2 [mm]: 9,7, L [mm]: 267, [g]: 290,
A []: 9/16, B [mm]: 31,0, B1 [mm]: 21,1, C1 [mm]: 9,5, E [mm]: 5,7, E max. [mm]: 5,7, E1 [mm]: 9,5, E2 [mm]: 6,4, L [mm]: 180, [g]: 85,
A []: 1'1/8, B [mm]: 60,7, B1 [mm]: 40,6, C1 [mm]: 16,1, E [mm]: 10,6, E1 [mm]: 16,1, E2 [mm]: 10,7, L [mm]: 305, [g]: 415
+ 2 23 mm
10 mm
17.48 mm
25 mm
19 mm
21.1 mm
16.9 mm
15 mm
22 mm
20 mm
23.9 mm
Standardschlüssel für alle gängigen Anwendungen. Hohe mechanische Leistung bei geringerem Platzbedarf, für Standards in der Luft- und Raumfahrt Ösenkopf: - Auslösung der Öse (Seite E) für besseren Zugang zu Schrauben in Reihe oder eingelassenen Schrauben - Zwölfkant-Öse mit OGV®-Profil für eine stärkere Einspannung bei Schonung der Mutter Nachgestellte Bezeichnung H = Sechskant-Öse. - Ösenkopf, zu 15° geneigt Gabelkopf: - Gabel, zu 15° geneigt - Optimiertes Design von Gabelkopf und Schaft für bessere Zugänglichkeit Abmessungen in Zoll: 1/4 bis 1 1/2. Ausführung: verchromt satiniert.
11.89 SFr. Inkl. MwSt
pro Stück {0} inkl. MwSt
Artikelnummer : Wählen Sie eine Variation
Dieses Produkt ist momentan nicht verfügbar.
